More About Powder Coating

---

Powder coating is a widely used dry finishing process designed to protect and enhance metal components through a thick, uniform coating layer. It is most commonly used for automotive parts, architectural elements, industrial equipment, appliances, and outdoor products where durability, coverage, and cost efficiency are key considerations.

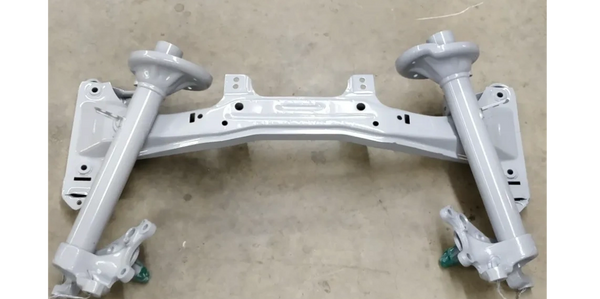

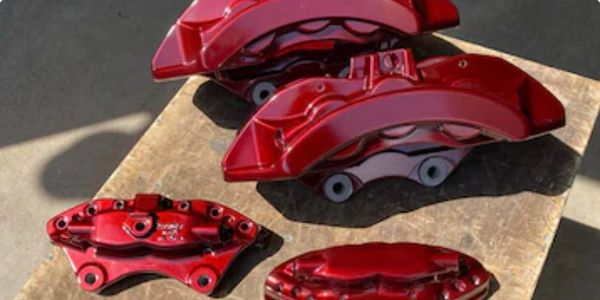

Powder coating is primarily used to provide robust surface protection and decorative finishes on parts exposed to wear, impact, weather, and general handling. It is especially well-suited for larger components and non-precision parts such as frames, wheels, panels, housings, railings, and structural elements. Its ability to produce a consistent, visually appealing finish makes it popular for both functional and aesthetic applications.

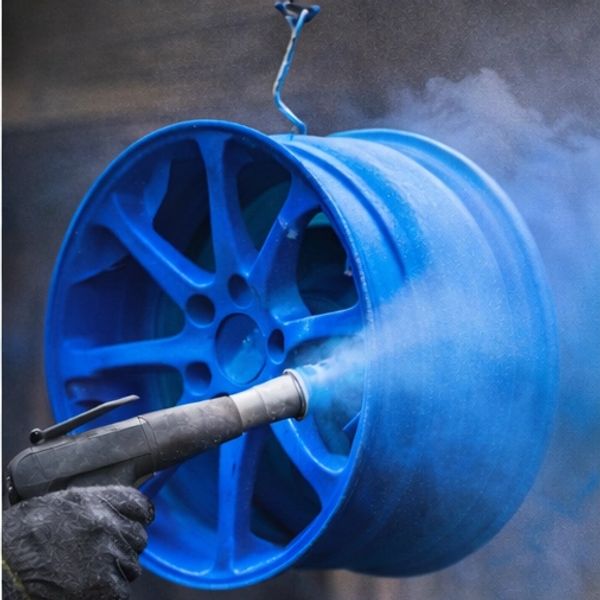

The process involves applying a finely ground powder—made from resins, pigments, and curing agents—to a grounded metal surface using electrostatic charge. Once applied, the coated part is cured in an oven, where heat causes the powder to melt, flow, and chemically crosslink into a solid, continuous film. This cured layer forms a thick, hard coating that adheres mechanically and chemically to the substrate.

Because powder coating relies on heat curing, it is generally limited to materials that can withstand high temperatures, such as steel and aluminum. Masking is often required for threads, mating surfaces, and tight-tolerance areas due to the coating’s thickness.

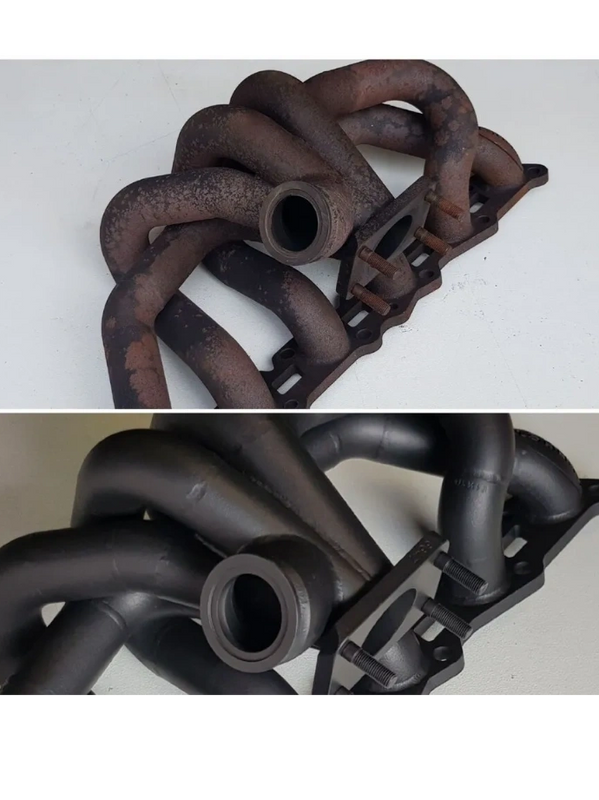

Powder coating protects components primarily through physical barrier protection. Its relatively thick film shields the underlying metal from moisture, oxygen, and environmental exposure, reducing the risk of corrosion. The coating also provides good impact and abrasion resistance, helping parts withstand knocks, scratches, and general wear better than many liquid paints.

In addition, powder coating offers UV and weather resistance, making it suitable for outdoor use when properly specified. However, because the coating is thicker than thin-film alternatives, damage such as chips or cracks can allow moisture to penetrate beneath the surface, potentially leading to under-film corrosion if not repaired.
